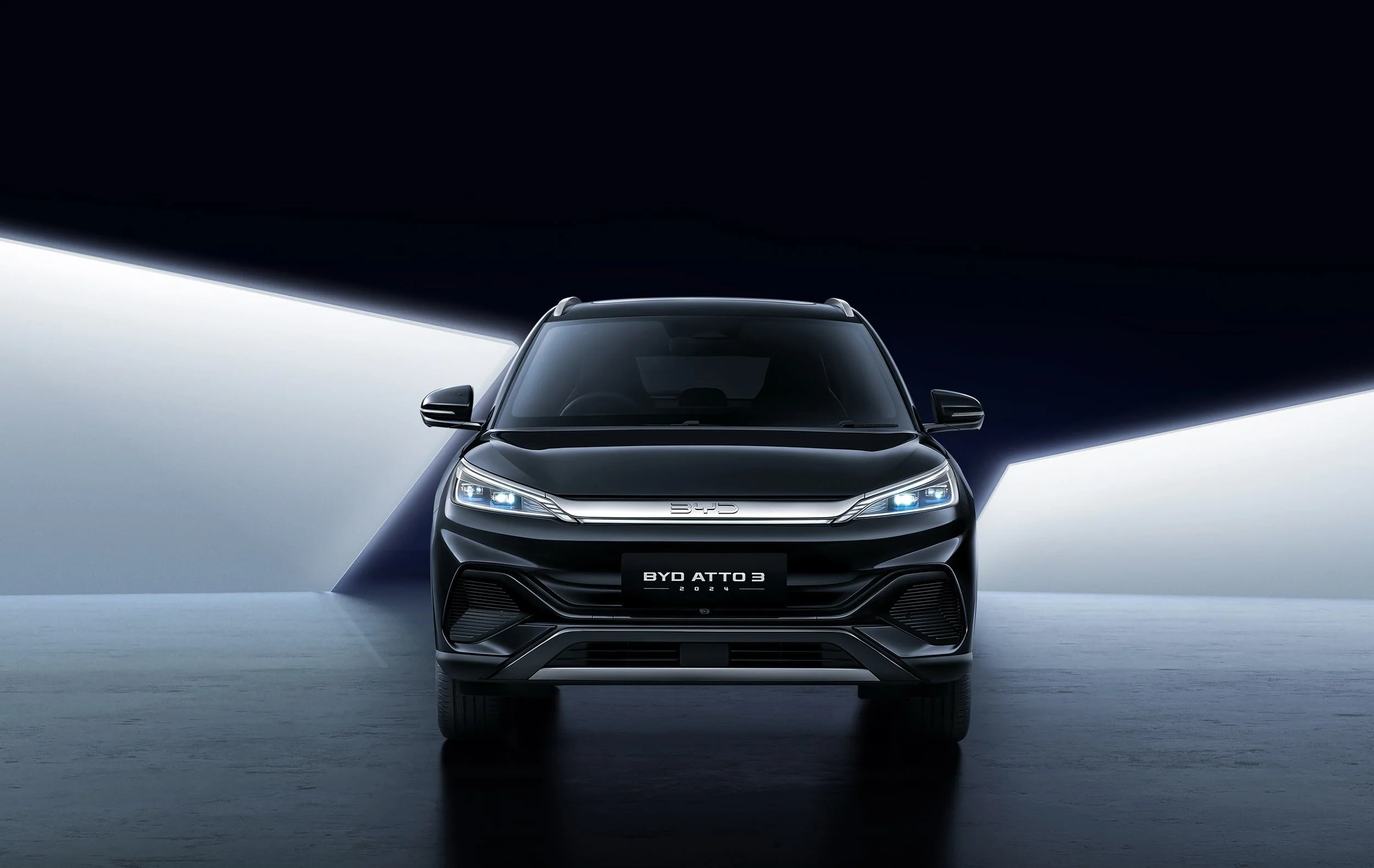

BYD ATTO 3
7.3 s
60.48 kWh
0-100km/h
420 km
Battery Capacity
WLTP Combined
-
Electric motor type >> Permanent Magnet Synchronous Motor
Drive type >> FWD
Max. power (kW), rpm >> 150, 5000-8000
Max. torque (N·m), rpm >> 310, 0-4620
Acceleration 0-100km/h (s) >> 7.3
Top speed (km/h) >> 160
Drag coefficient (Cd) >> 0.29
Front suspension >> MacPherson
Rear suspension >> Multi-link
Brake >> Ventilated disc brakes
-
Electric range - combined (km) >> 420
Electric range - city (km) >> 565
Consumption - combined (Wh/km) >> 156
Consumption - city (Wh/km) >> 120
CO2 Emissions - combined (g/km) >> 0
-
AC charge (7kW 1-phase charger) 0-100% >> Active: 9 hrs 42 mins
AC charge (11kW 3-phase charger) 0-100% >> 6 hrs 30 mins (Not available for active)
DC charge (150kW charger) SOC 10%-80% >> 29 mins
DC charge (150kW charger) 0%-100% >> 80 mins
-
Length: 4455
Width: 1875
Height: 1615
Wheelbase: 2720
Front track: 1575
Rear track: 1580
-
Kerb weight (kg) >> 1750
Gross vehicle weight (kg) >> 2160
Max. front axle load (kg) >> 1070
Max. rear axle load (kg) >> 1110
Max. roof load >> 50
Min. turning circle (m) >> 10.7
Luggage compartment volume (L) >> 440
Luggage compartment volume to roof - seats up/down (L) >> 555/1338
-
Battery type >> BYD Blade Battery(LFP)
Battery capacity(kwh) >> 60.48
Battery position >> Under floor
Nominal voltage (V) >> 403.2
Battery weight (kg) >> 420 (±3%)
Energy density (Wh/kg) >> 140





EXTERIOR
